CARGOTRACK

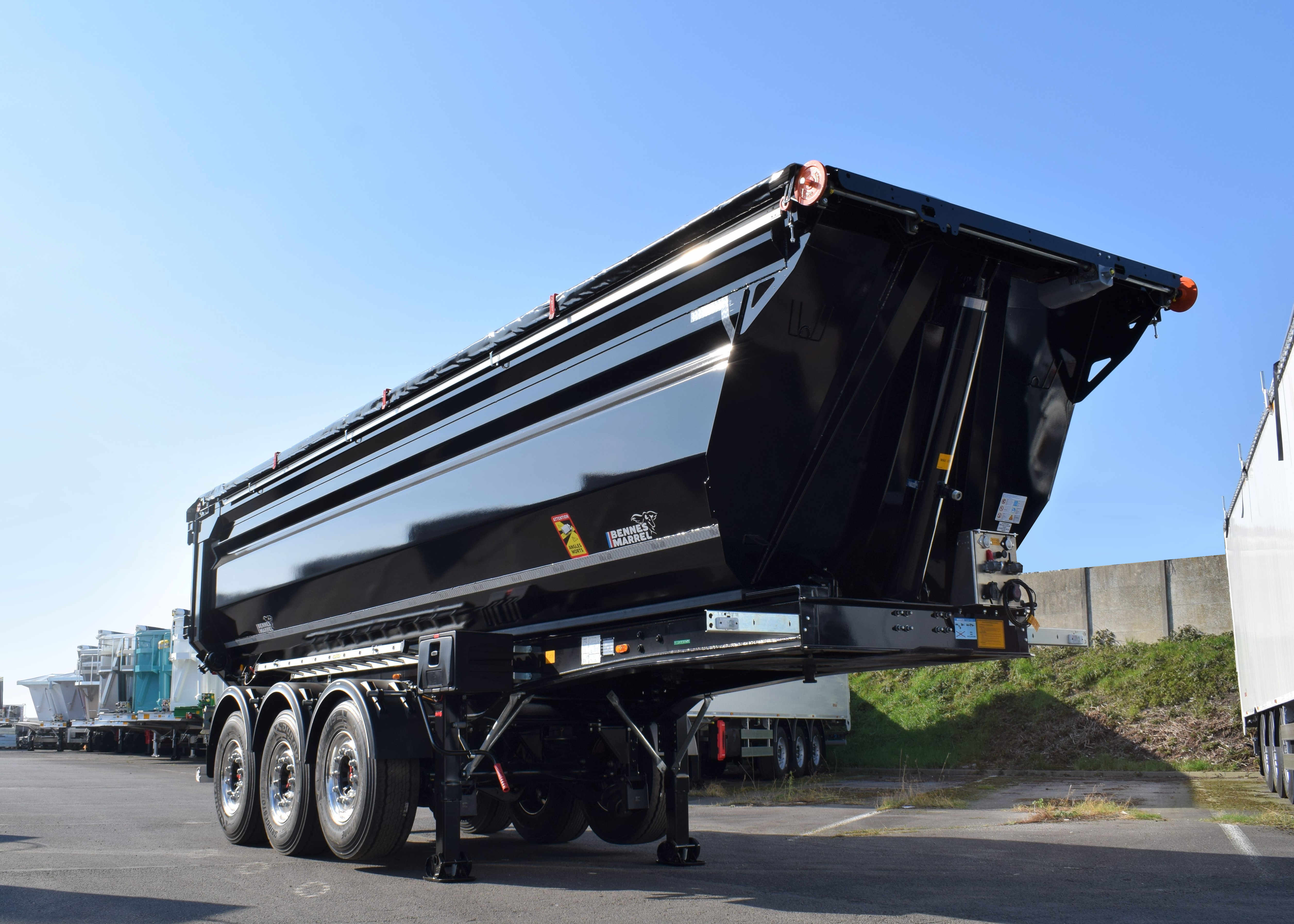

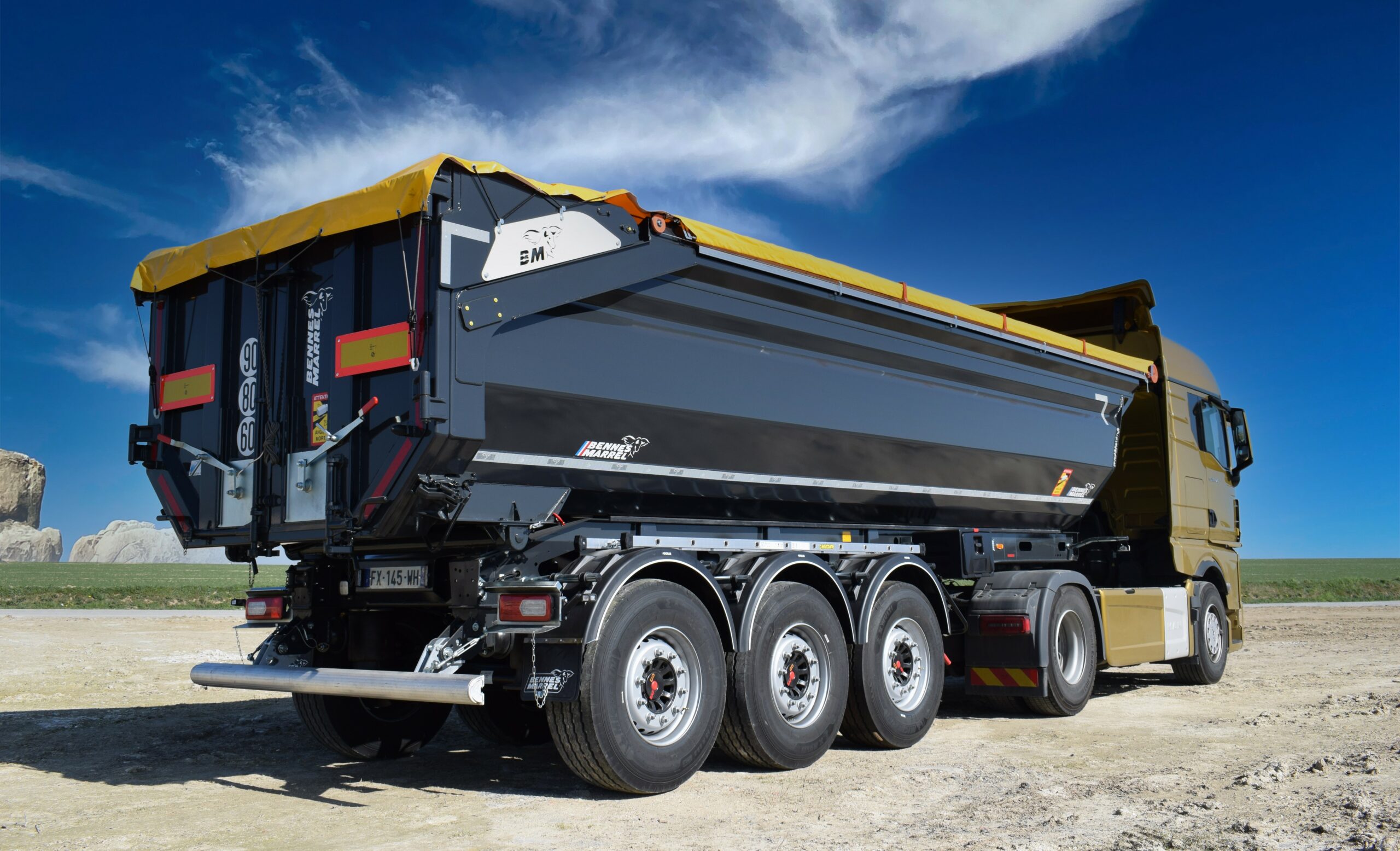

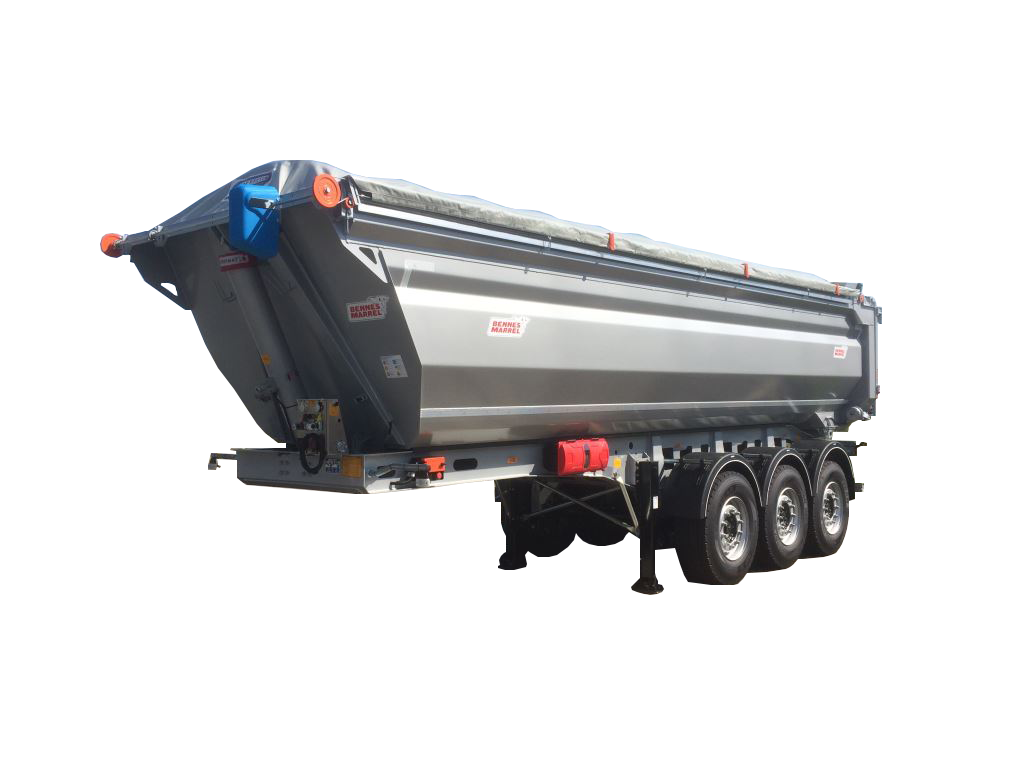

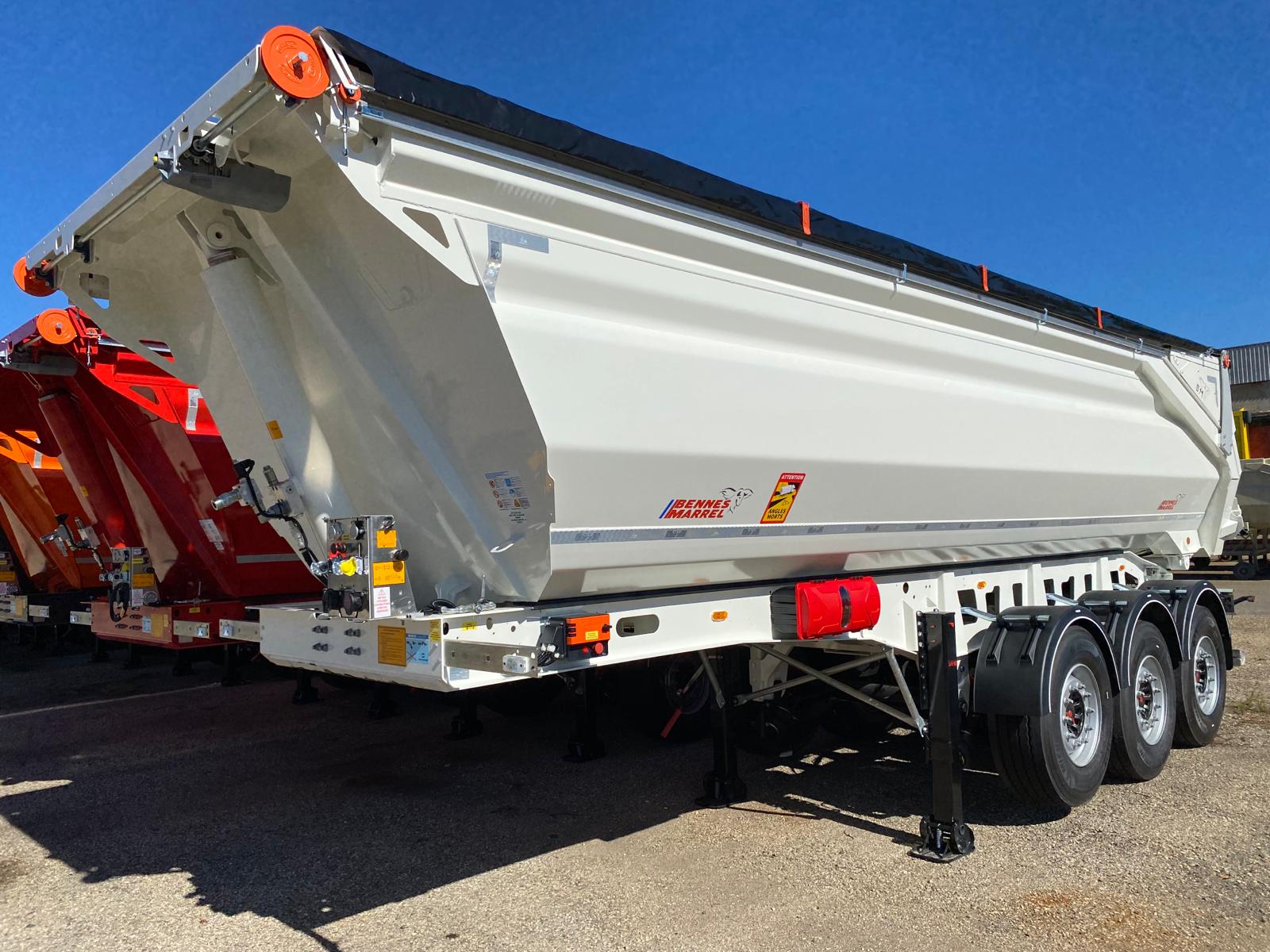

THE CARGOTRACK MADE OF STEEL

Tipper with chassis and body steel

Useful length

from 7,5 m up to 7,70m

Useful height

from 1,55m up to 1,65m

Volumes

from 26 up to 29m3

Weight

from 6000 kg

Goods

small stones, sand, asphalt, earth, mud

Faceted body HB450

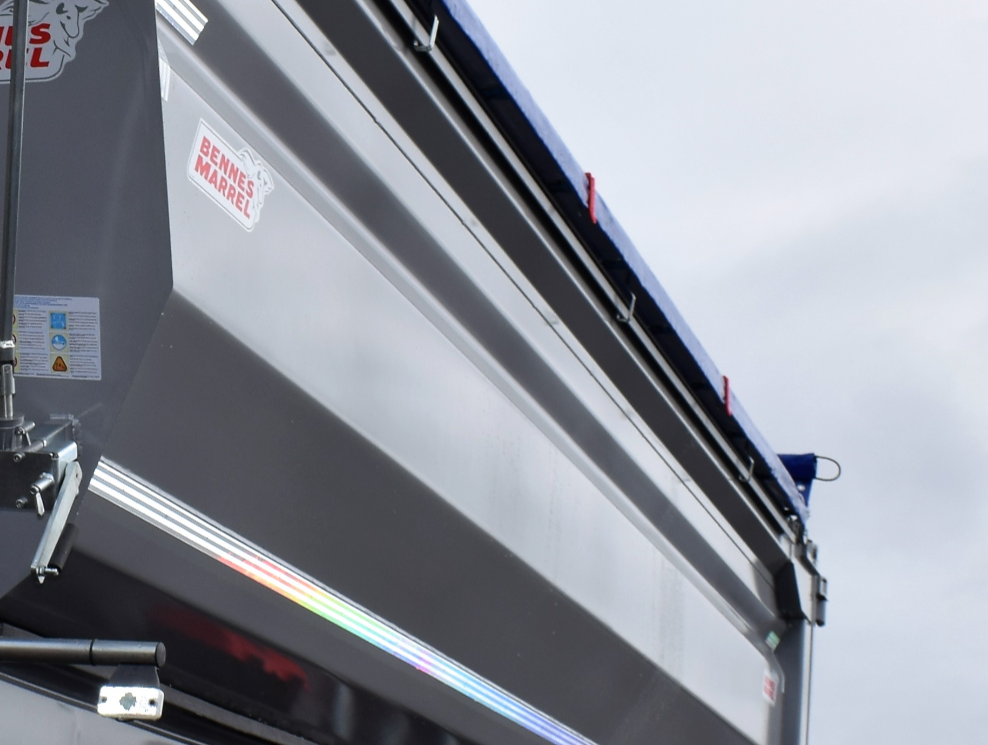

curved side wall body with ribbed foldings

Steel straight chassis

robust and suitable for uneven grounds

Various profile thicknesses

4 mm for the side walls and 4 up to 6 mm for the floor

Rear bumpers

Ultra compact, polyvalent which is especially suitable for road laying machine

52 OPTIONS AND VARIANTS FOR THIS TYPE

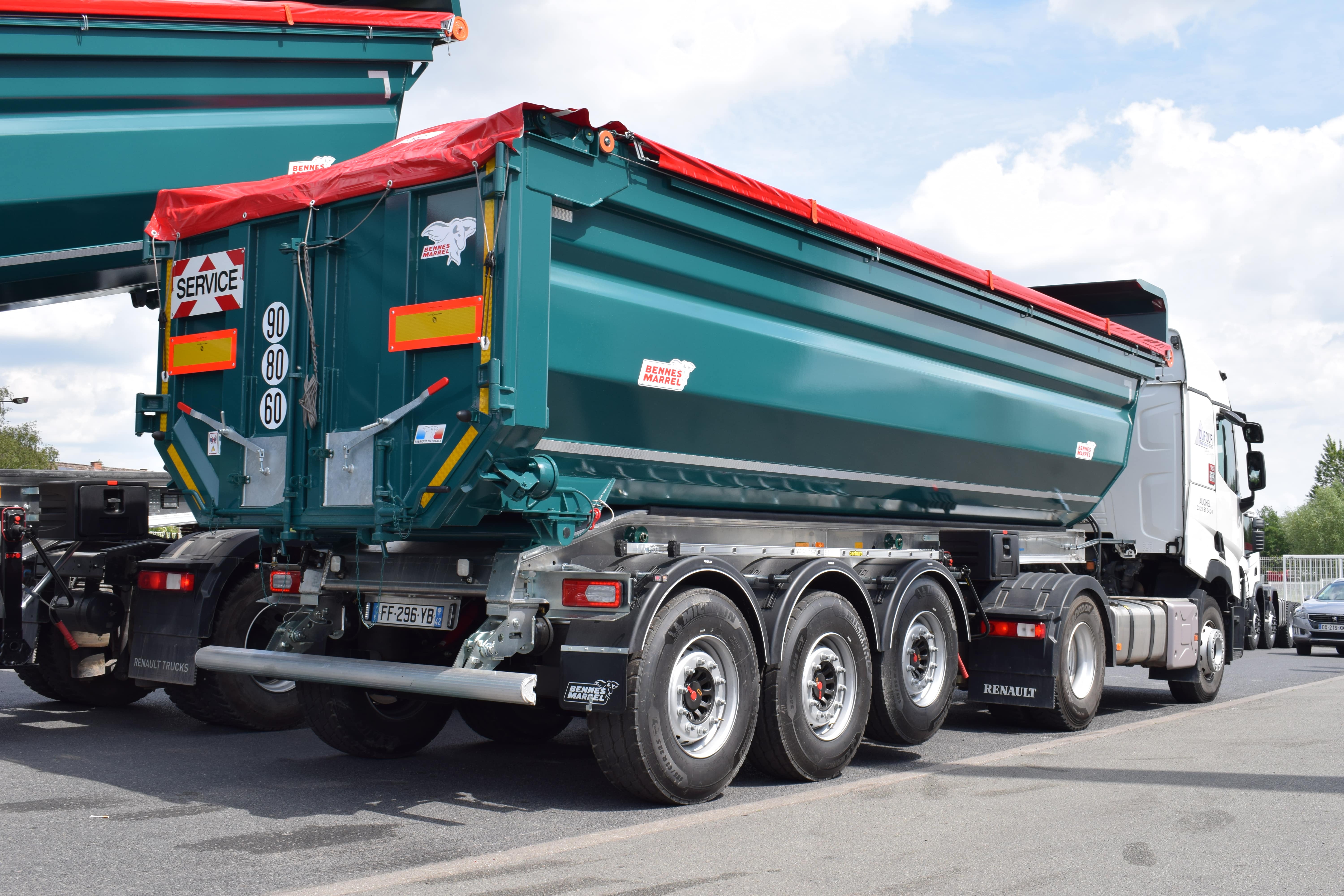

Compact 7.50m vehicle

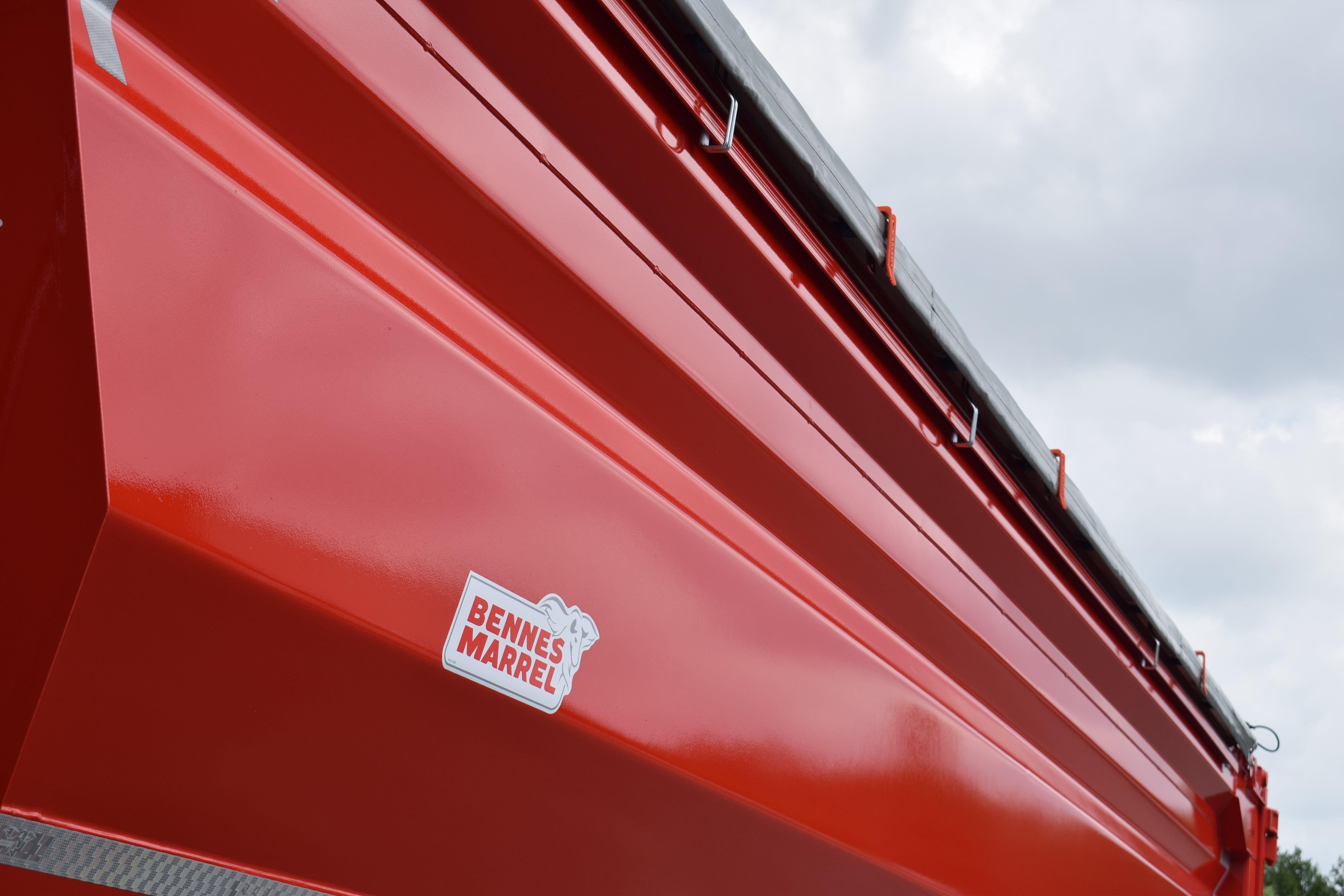

Reinforcing folds on the sides

Different sheet thicknesses (bottom and sides)

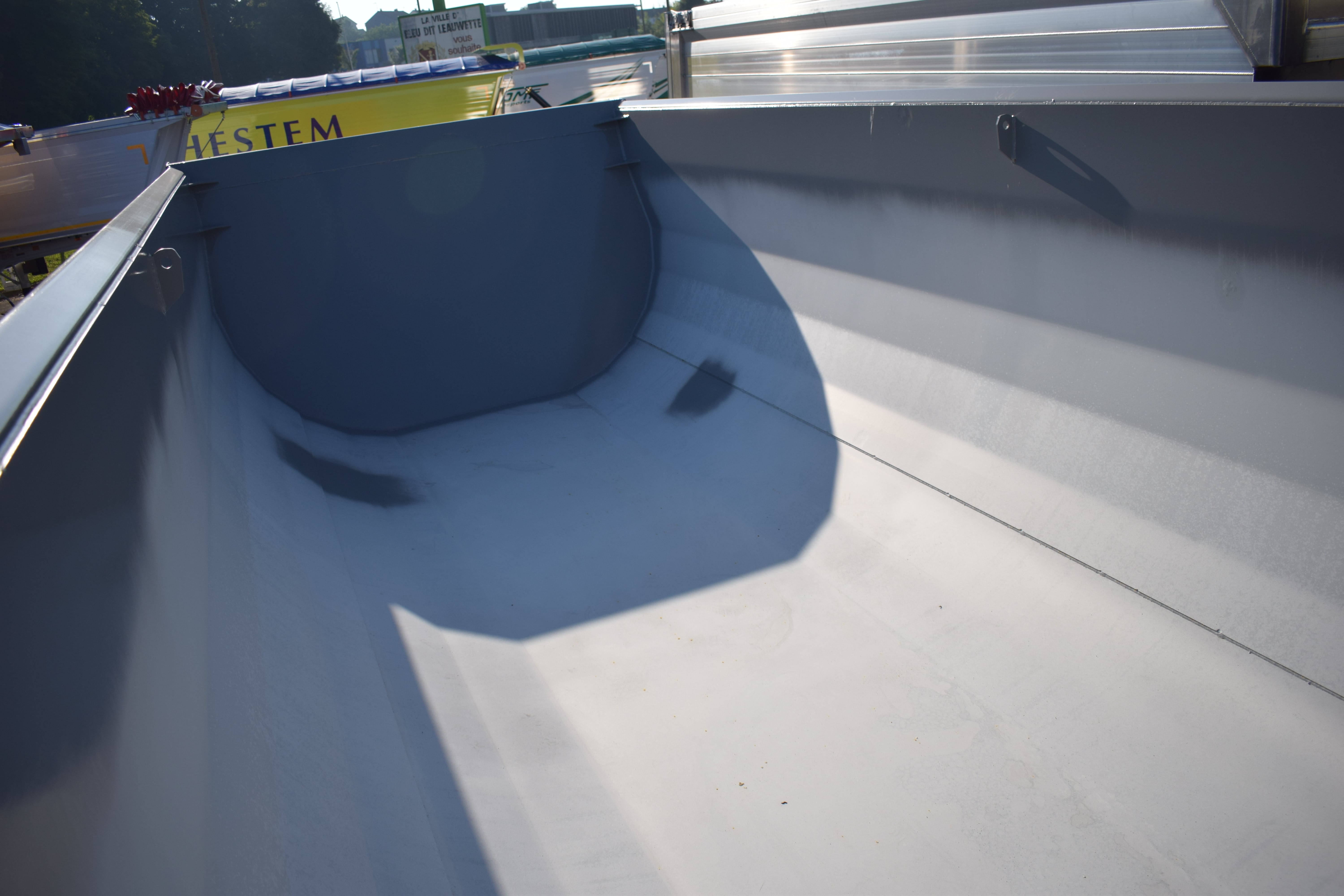

Faceted body HB450

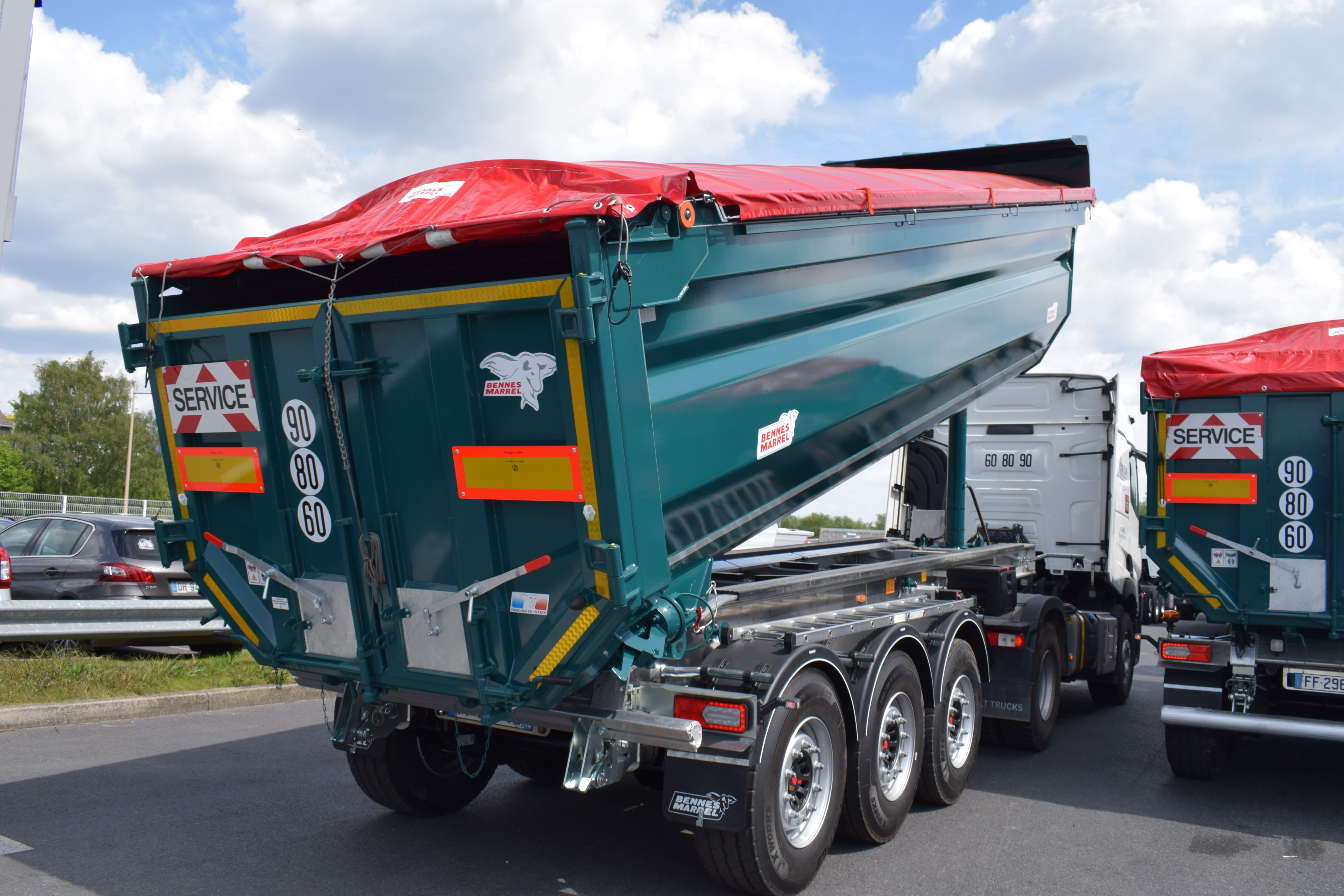

Longitudinal tarpaulin covering over the entire length

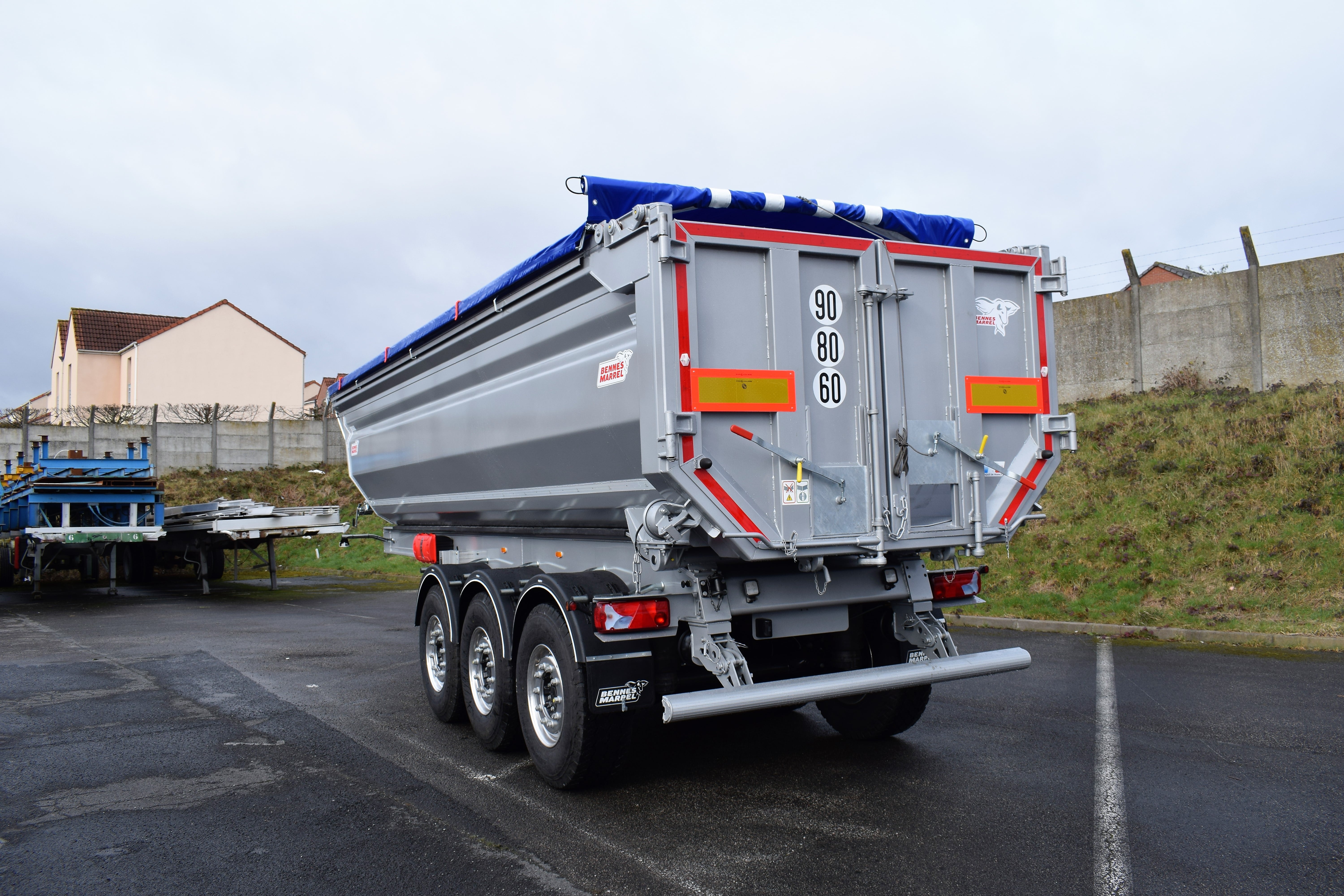

Universal door

Hydraulic door

Longitudinal welds

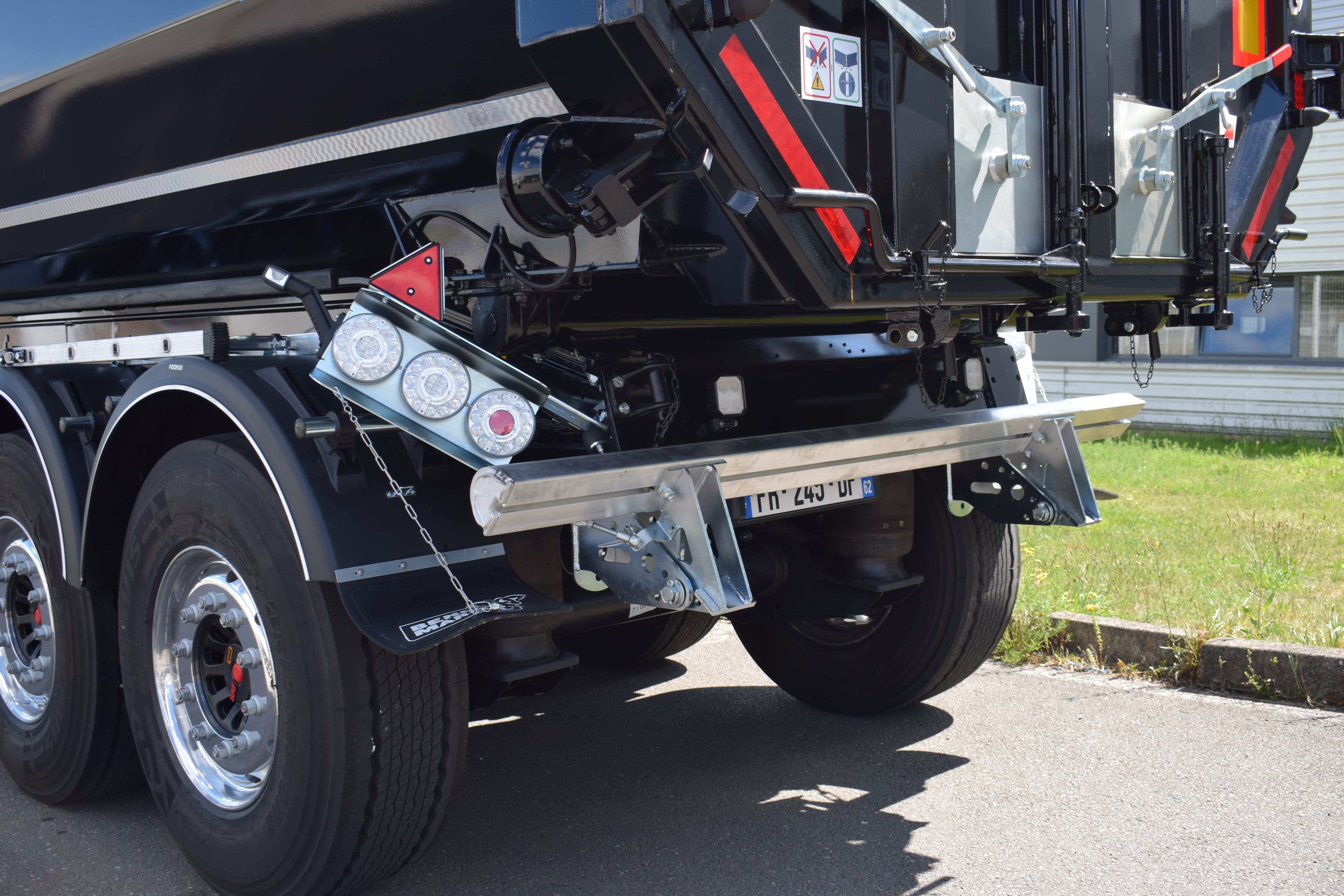

Folding lights

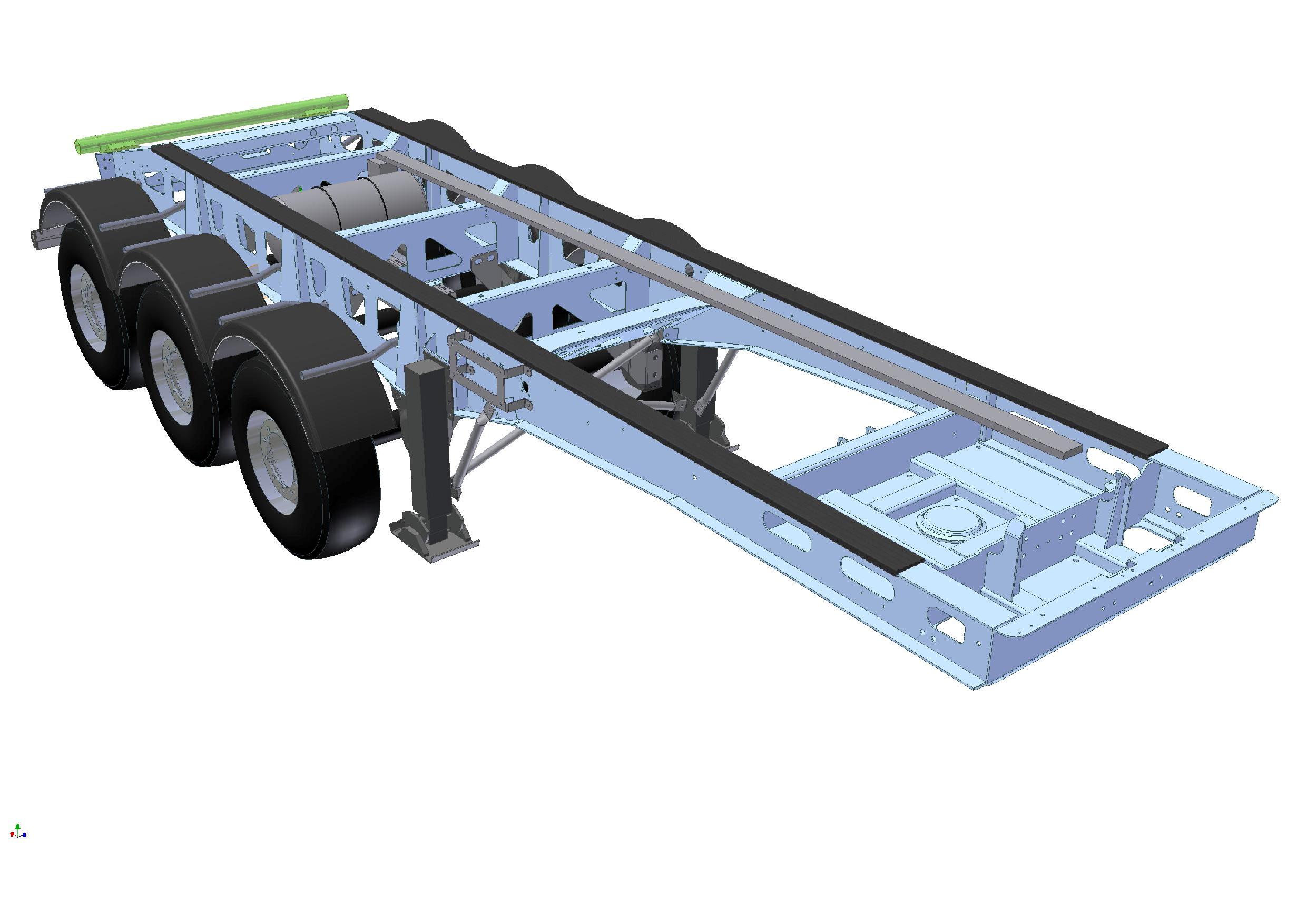

Steel straight chassis

Compact pneumatic bumper

Options especially designed to meet your needs !

Chassis options

  • Pneumatical or manual compact rear bumpers
  • Self-steering axle
  • Lift axles
  • Tool box
  • Full LED lights

Body Options

  • Side walls and floor insulation
  • Universal or hydraulic back door
  • Hydromechanical or pneumatic back door locking device
  • Tool holders on the front wall
  • Various profile thicknesses (floor and side walls)
  • Grain hatches on the back door

Finishing options

  • Unlimited colors and customizations
  • Longitudinal cover sheet on cable or lateral with manual or electrical control
