OPTILINER

THE HIGHLY VERSATILE VEHICLE FOR AGRICULTURE

Tipper with aluminium chassis and body

Useful length

from 9,5 m up to 13,30m

Useful height

from 1,85m up to 2,40m

Volumes

from 43 up to 79m3

Weight

from 5700 kg

Goods

Agricultural products, Euro paletts, fertilizers, big bags, large steel profiles

Side walls

with various thicknesses to meet with your loading expectations

Optimized useful width

2470 mm suitable for Euro paletts transport

Multipurpose vehicle

Internal body angles designed for the transport of pallets (up to 33)

Step frame chassis

To optimise volume and improve stability

64 OPTIONS AND VARIANTS FOR THIS TYPE

Rear lights support on the total width

Removable upper cross member (in option)

Stabilizing rear landing legs

3 axles single mounting according to customer choice

Inner body profiles designed for the transport of pallets

Step frame chassis

Smooth side walls

Walkway simple or double access

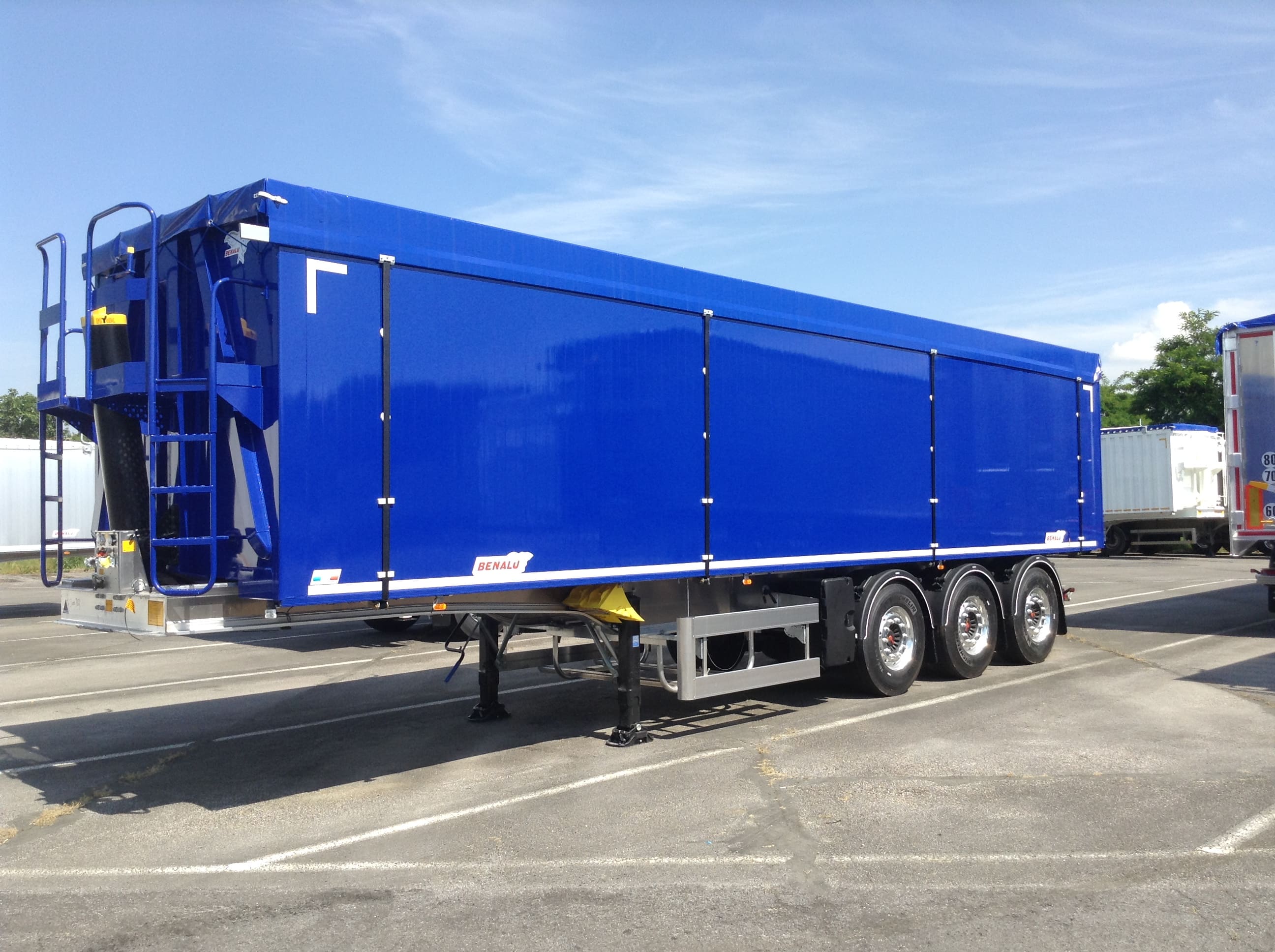

Lateral cover sheet system

Straps under planks (option)

EASYTARP cover sheet system

Options especially designed to meet your needs !

Chassis options

  • Self-steering axle
  • Lift axles
  • Rear stabilizing landing legs
  • Tool box
  • Anti-rollover system
  • Full LED lights
  • Choice of wheel offsets

Body Options

  • Wiremesh door for sugar beets
  • Grain hatches
  • EASYBULK : Floor protection sheet for sticky products with front straight face
  • Back door with remote unlocking device
  • Tool holders on the front wall

Finishing options

  • Unlimited colors and customizings
  • Side rolling cover sheet or EASYTARP™ electrical cover sheet system
